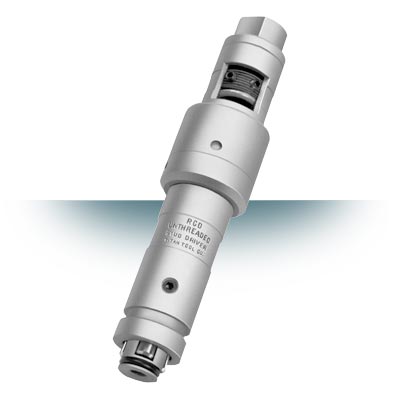

TITAN 'RCD™' TORQUE CONTROLLED UNTHREADED STUD DRIVER

Download Brochure

Grips nut end of stud or pin and drives to torque. Ideal for all applications involving studs without thread on nut end being driven to shoulder on stud or bottom of hole. Releases stud easily when clutch activates and does not need to reverse direction.

Use on any fully or semi-automatic assembly machine or on any power hand tool (except impact wrench).

Stud Capacities: available from 3/16″ thru 3/8″ and M5 thru M10. Torque Range: adjustable from 0 inch-pounds thru 17 foot-pounds (0 thru 23 Nm).

POSI-LOAD® stud retainer: available for applications where pre-loading of stud driver would be beneficial.
